EzRay Air W 68"

Product Description

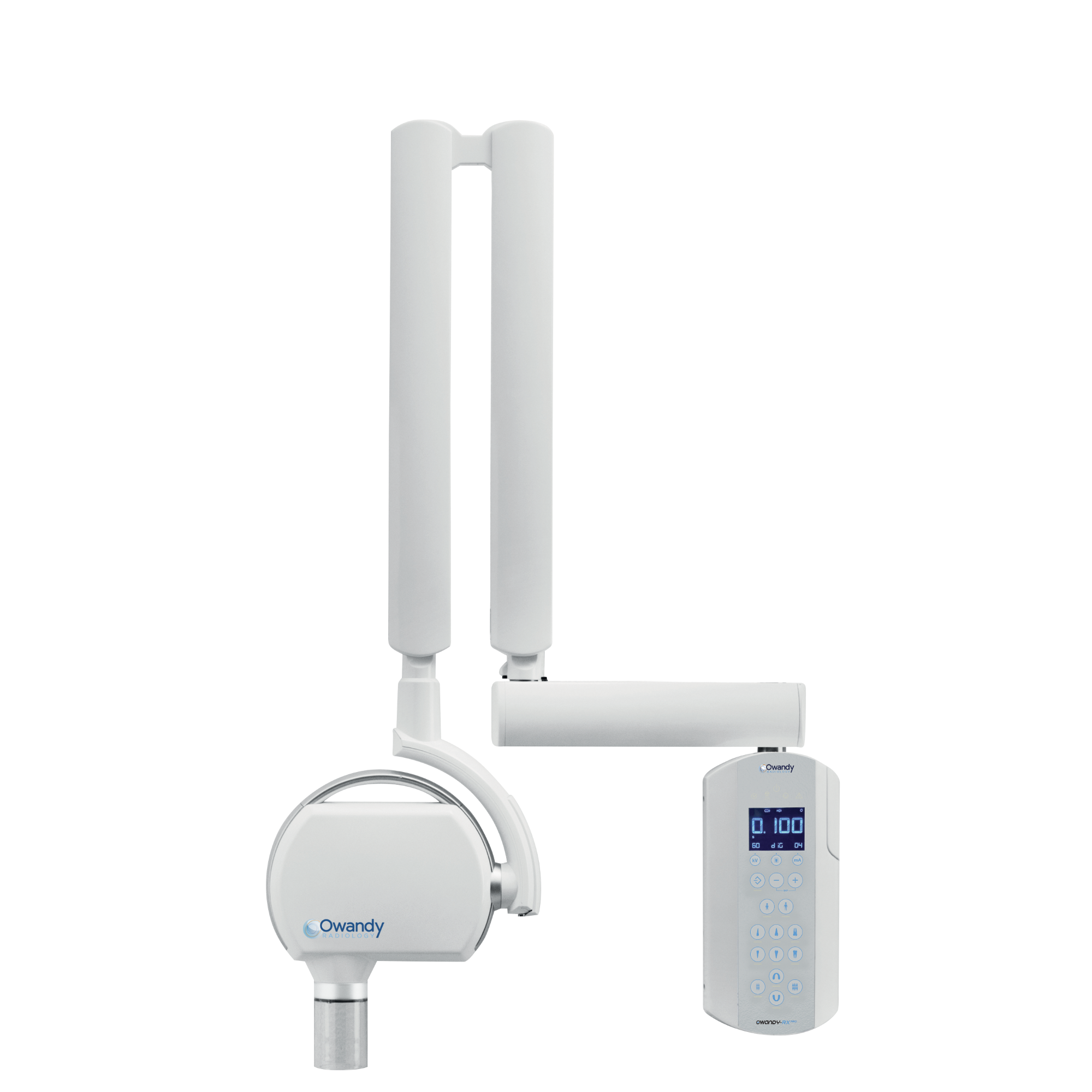

The wall-mounted EzRay Air Wall is a lightweight X-ray device designed for easy handling and stable positioning. EzRay Air W The EzRay Air Wall’s lightweight tube head provides users with a stable, easy-to-use X-ray source that maximizes image clarity and optimizes workflow. Carbon Nano Technology The EZ Ray Air W is equipped with carbon nano technology, which enables the device with weight innovation and ultimately provides users with a stable, easy-to-use X-ray source that maximizes image clarity and optimizes workflow. Smart Dial for All Functions The operating panel, located on the tube head, creates a much simpler and faster workflow. Practitioners who use the Smart Dial will notice a decrease in preparation time. Footprint & Size of Machine 3 Horizontal Arm Length Choices: 17.7”, 23.6”, 35.4” Stationed to Wall: 35.1”(L), 41”(L), or 52.8”(L) x 45.3”(W) Longest Reach: 62.4”, 68.3”, or 80.1” SPECIFICATION - EzRay Air W: VEX-S300W FOCAL SPOT : 0.4 mm (IEC 60336) TUBE VOLTAGE : 65 kVp TUBE CURRENT : 3.0 mA EXPOSURE TIME RANGE : 0.05 ~ 0.5 (0.01s increment) SOURCE TO SKIN DISTANCEMin. : 7.9 inch X-RAY FIELDDefault : 60 mm Round, 30 x 40 mm Rectangular Optional: 20 x 30 mm Rectangular ARM LENGTH [OPTION] : 62”/ 68”/ 80” *See note A ACCESSORIES : Remote Exposure Switch (Hand Switch / Doorbell Switch) WEIGHT : 58.0 Ib (Arm Length 68") * The specifications are subject to change without prior notice.
