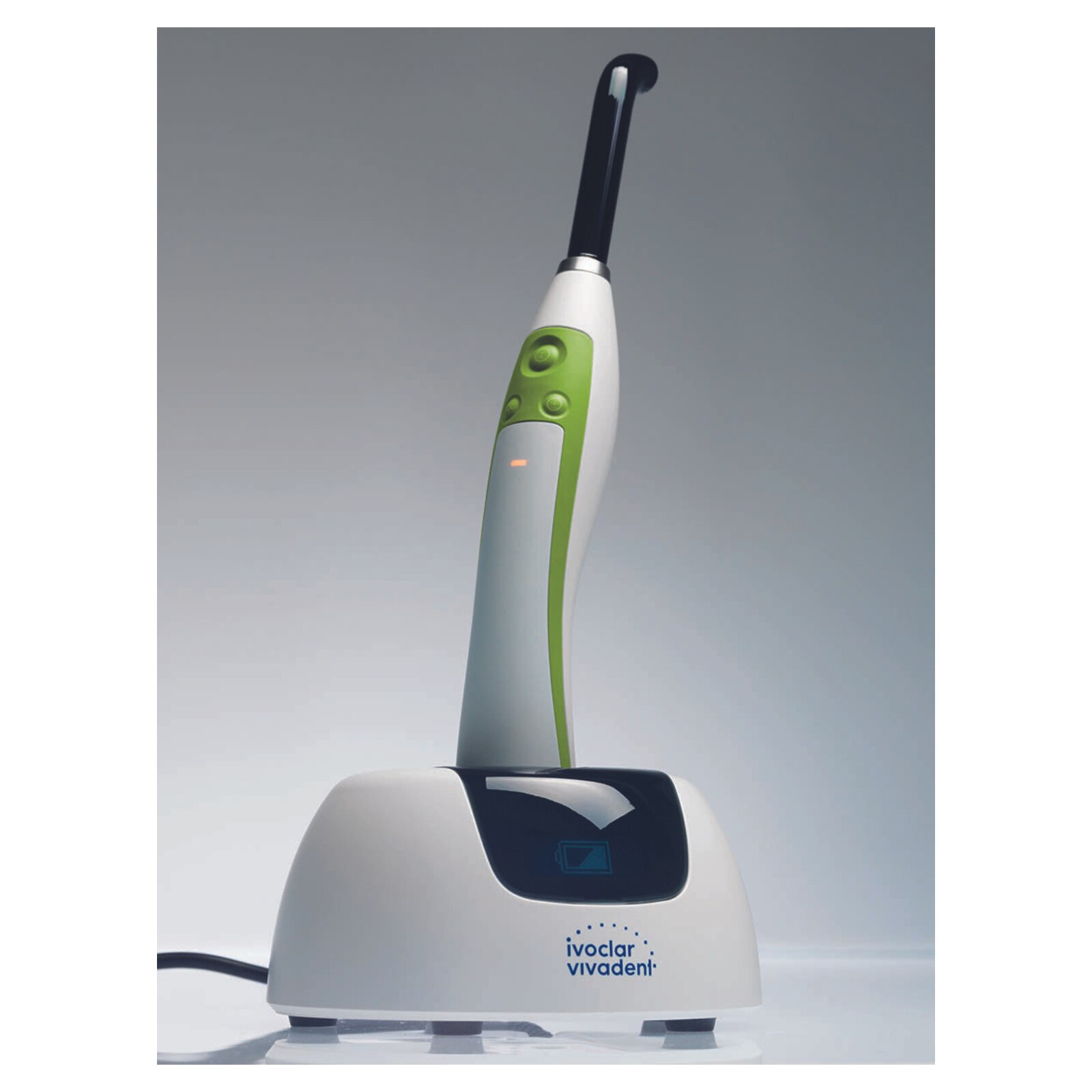

Bluephase® G4 Green Curing Light with Radiometer 100-240V

Product Description

Bluephase® G4 is an intelligent LED curing light thanks to its Polyvision™ technology that helps clinician ensure a more effective polymerization of light-cured dental materials. Polyvision alerts the clinician if they move the curing light probe away from the tooth while curing and dynamically increases the curing time to compensate for the movement. Polyvision is like a vehicle's lane departure warning system because it helps the clinician keep the curing light probe focused on the tooth for more effective polymerization of the dental material. Bluephase G4 also features Polywave™ technology, which provides a broad wavelength spectrum of 385-515nm, which allows the light to cure all dental materials on the market today. Bluephase® G4 is now available in Grey, Blue, Green & Pink colors. Includes: 1 Bluephase G4 handpiece 1 Bluephase G4 battery 1 light guide 10mm black (G4) 1 charging base with built-in radiometer 1 power cord 1 power pack 3 anti-glare cones 50 protective sleeves PRODUCT SPECIFICATIONS: Light source: Ivoclar Vivadent Polywave® LED Wavelength range: 385–515 nm Light intensity: High Power program: 1,200 mW/cm2 ± 10 % PreCure program: 950 mW/cm2 ± 10 % Operation: 3 min on / 7 min off (intermittent) Light guide: 10 mm, autoclavable Signal transmitter: acoustic every 10 seconds and every time the start/stop button or the time / program selection button is activated or the anti-glare protection is enabled or the curing process is aborted Dimensions of the handpiece (without light guide): L = 170 mm, B = 30 mm, H = 30 mm Weight of the handpiece: 135 g (including battery and light guide) Operating voltage handpiece: 3.7 VDC with battery; 5 VDC with power pack Operating voltage of the charging base without radiometer: 100–240 VAC, 50–60 Hz, max 0.1 A Operating voltage of the charging base with integrated radiometer: 5 VDC Power supply: Input: 100–240 VAC, 50–60 Hz max 1 A Output: 5 VDC / 3 A Manufacturer: EDAC POWER ELEC. Type: EM1024B2 Operating conditions: Temperature +10 °C to +35 °C Relative humidity 30 % to 75 % Ambient pressure 700 hPa to 1060 hPa Dimensions of the charging base: D = 110 mm, H = 55 mm Weight of the charging base without radiometer: 155 g Weight of the charging base with radiometer: 145 g Charging time: Approx. 2 hours (with the battery empty) Power supply of the handpiece: Li-Ionen battery (approx. 20 min. with a new, fully charged battery in the High Power program) Transportation and storage: conditions Temperature –20 °C to +60 °C Relative humidity 10 % to 75 % Ambient pressure 500 hPa to 1060 hPa The curing light has to be stored in closed, roofed rooms and must not be exposed to severe jarring. Battery: – Do not store at temperatures above 40 °C / 104 °F (or 60 °C / 140 °F for a short period). Recommended storage temperature 15–30 °C / 59–86 °F – Keep the battery charged and store no longer than 6 months. Warranty: 3 years on light, 1 year on battery Non-Latex
